Cioks Strømforsyninger

Cioks AC10

kr 2 490

Ikke på lager, tilgjengelig som restordre

+

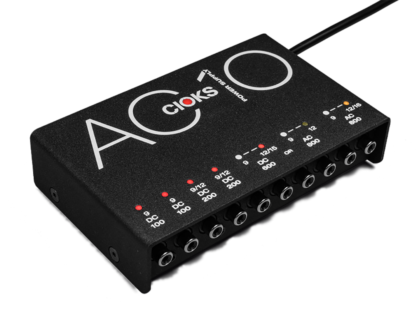

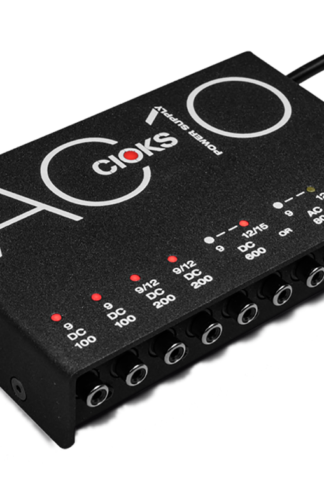

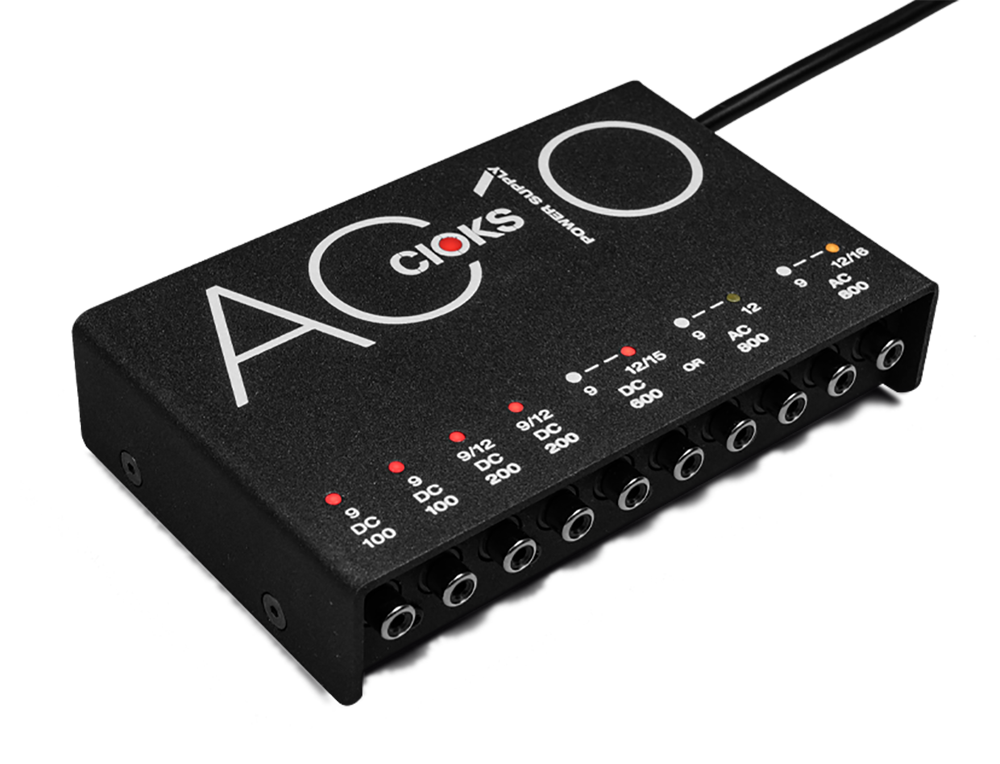

AC10 er medlem i den CIOKS nye professional serie med multi-output strømforsyning for effektpedaler.
AC10 har 10 regulerte og godt filtrerte DC outputs i 8 isolerte seksjoner hvor to er kraftige AC seksjoner på 800mA hver.
Her kan du mao du gi strøm til det meste av AC drevne pedaler enten det er 9V, 12V eller 16V.
Du kan også konvertere en AC seksjon til DC 9V, 12V eller 15V med 600mA output.
AC10 funker fint om du har kun noen få AC drevne pedaler, sammen med de standarddrevne DC pedalene.

Specification

Spesifikasjon
  • 10 outlets configured in 6 isolated sections
  • Toroidal transformer with additional electromagnetic field shielding
  • 2 powerful AC sections with 800mA each
  • 9, 12 and 16V AC available
  • One AC section convertible into a 600mA DC section
  • 15V option for Radial Tonebone pedals
  • Short circuit protection of all outlets
  • Advanced LED monitoring of each section
  • 120 or 230V mains voltage operation
  • Total of 16 Flex cables in total included
  • Split Flex for powering two pedals of one outlet included
  • Stack Flex and Series adapter Flex for powering 18 or 24V pedals included
  • Flex cable for Electro-Harmonix vacuum tube pedals included
  • Compatible with Pedaltrain and Temple Audio pedalboards
  • Mounting bracket and all pedalboard mounting hardware included
Hva følger med?
  • CIOKS AC10 power supply
  • Mains power cord
  • 17 Flex cables:
    • Type 1 – black with 5,5/2,1mm centre negative DC plug x8
    • Type 2 – red with 5,5/2,1mm centre positive DC plug x1
    • Type 4 – green with 5,5/2,5mm centre positive DC plug x2
    • Type 5 – black with 3,5mm tip positive Jack plug x1
    • Type 6 – black with 9V battery clip x1
    • Type 7 – blue with 2 pin DIN plug x1
    • Split Flex type 1 – powers two pedals of a single outlet x1
    • Stack Flex type 1 – white/black, adds voltages of two outlets x1
  • Pedalboard mounting hardware: mounting bracket, screws, washers, stand-off and a hex key
  • Manual
  • Product sheet (drill guide)
  • Flex guide
