Cioks Strømforsyninger

Cioks CIOKOLATE

kr 3 890

Ikke på lager, tilgjengelig som restordre

+

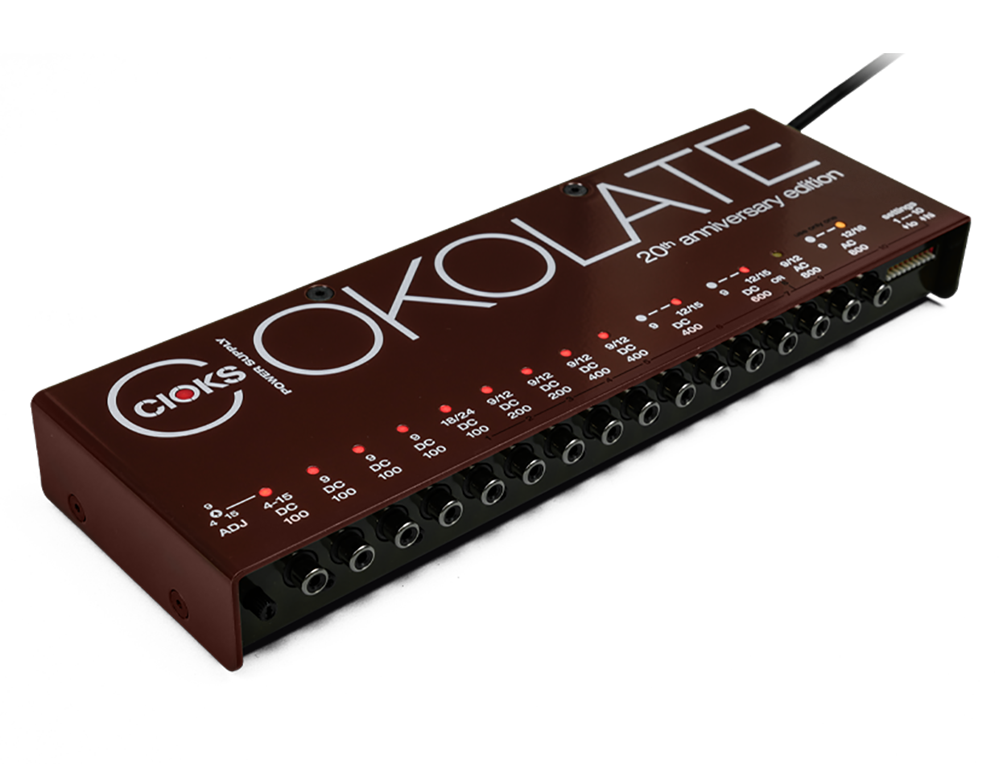

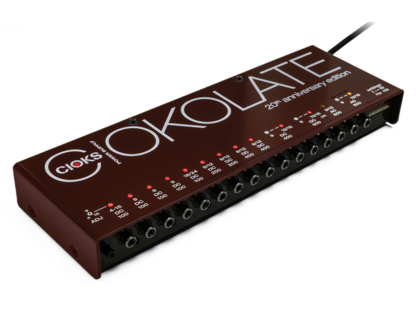

Cioks CIOKOLATE er et monster av en strømforsyning med 16 utganger som leverer både DC- og AC-strøm.
Denne strømforsyningen er mest sannsynlig den kraftigste på markedet og det er en 'gjengangervits' her på huset at denne klarer å holde et boligstrøk i Kristiansund med strøm.

I praksis så er Ciokolate en AC10 og en DC10 i samme boks, og den er spesielt egnet til de med store og komplekse pedalbrett som trenger strøm i hele regnbuens farger.
Les spesifikasjonene under, så ser du hva greia er.

Specification

Spesifikasjon
  • 16 outlets configured in 12 isolated sections
  • Two toroidal transformers with additional electromagnetic field shielding
  • 4 powerful DC sections, three with 400mA each and one with 600mA
  • 2 powerful AC sections with 800mA each and voltages 9, 12 and 16V AC
  • Two 15V outlets for Radial Tonebone pedals
  • Possibility of 18 or 24V with 100mA from a single outlet
  • One outlet with adjustable voltage in the range 4-15V
  • Will power a vintage 40V Electro-Harmonix pedal with Stack Flex (15V+24V)
  • Short circuit protection of all outlets
  • Advanced LED monitoring of each isolated section
  • 120 or 230V mains voltage operation
  • Total of 24 Flex cables included
  • Split Flex for powering two pedals of one outlet included
  • 3-way daisy chain Flex powering 3 pedals of one outlet included
  • Two types of Stack Flex making a series connection (adding voltages of two outlets) included
  • Flex cable for Electro-Harmonix vacuum tube pedals included
  • Compatible with Pedaltrain and Temple Audio pedalboards
  • Two mounting brackets and all pedalboard mounting hardware included
Hva følger med?
  • CIOKS CIOKOLATE power supply
  • Mains power cord
  • 24 Flex cables:
    • Type 1 – black with 5,5/2,1mm centre negative DC plug x12
    • Type 2 – red with 5,5/2,1mm centre positive DC plug x1
    • Type 4 – green with 5,5/2,5mm centre positive DC plug x3
    • Type 5 – black with 3,5mm tip positive Jack plug x2
    • Type 6 – black with 9V battery clip x1
    • Type 7 – blue with 2 pin DIN plug x1
    • Split Flex type 1 – black, powers two pedals of a single outlet x1
    • 3-way Daisy chain Flex type 1 – black, powers three pedals of a single outlet x1
    • Stack Flex type 1 – white/black, adds voltages of two outlets x1
    • Series adapter Flex – white, adds voltages of two outlets x1
  • Pedalboard mounting hardware: two mounting brackets, screws, washers, stand-offs and a hex key
  • Manual
  • Product sheet (drill guide)
  • Flex guide
