Cioks Strømforsyninger

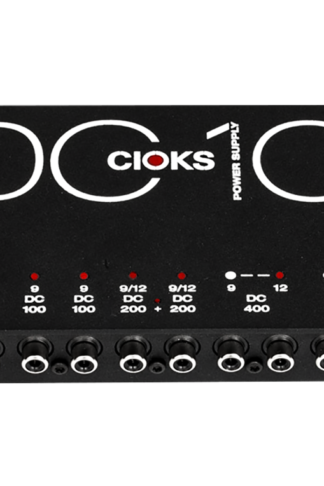

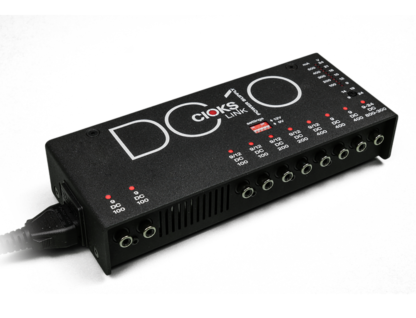

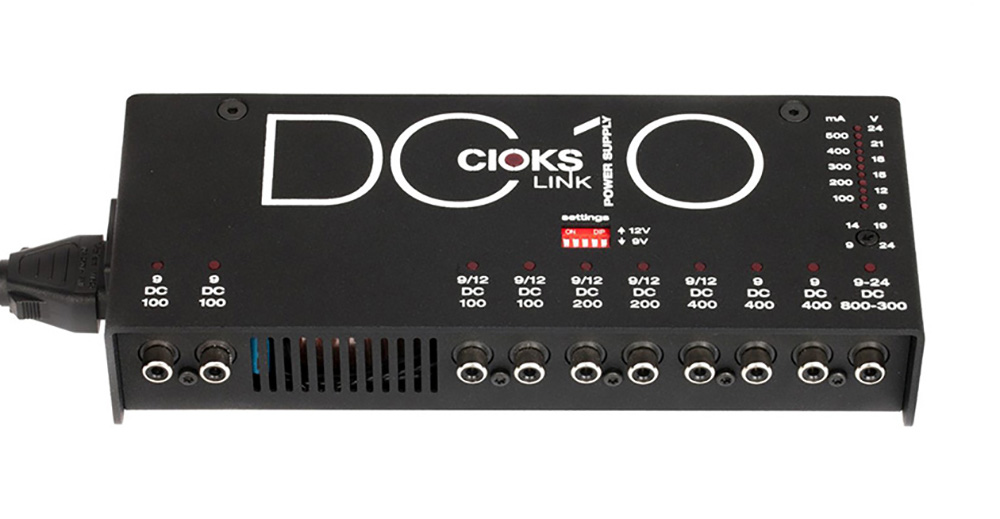

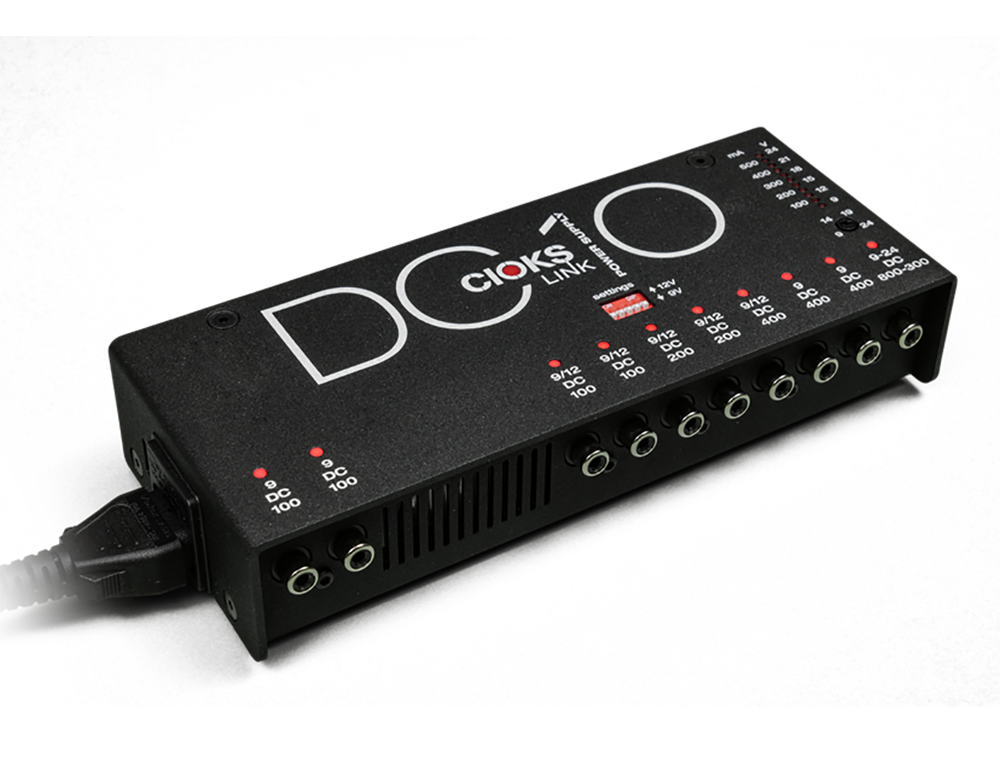

Cioks DC10 link

kr 2 890

På lager (kan restbestilles)

+

Cioks DC10 Link leverer inntil 2.800mA og den stiller i tungvektsklassen i kategorien profesjonelle strømforsyninger.
DC-10 har ti isolerte utganger som leverer 9V, 12V og justerbare 9 til 24V.
Denne strømforsyningen er såpass godt utrustet at den dekker alle utfordringer, både nye og gamle, med ren og fin DC-strøm.

Skulle du finne ut i etterkant at du trenger enda mer strøm kan DC10 Link linkes opp mot en av de andre strømforsyningene i Link-serien.

Specification

Spesifikasjoner
  • 10 isolated and well filtered outlets
  • Total output current of 2.800mA
  • Toroidal transformer with additional electromagnetic shield
  • Adjustable 9-24V DC outlet with mA-meter and very high current capability
  • Three high current outlets each 400mA
  • Two medium current outlets each 200mA
  • Four 100mA outlets for standard pedals
  • Short circuit protection of all outlets
  • Advanced LED monitoring of each outlet
  • 120 or 230V mains voltage operation
  • Courtesy AC mains outlet
  • CIOKS unique mains link feature
  • Total of 17 Flex cables included
  • Compatible with Pedaltrain and Temple Audio pedalboards
  • All pedalboard mounting hardware included
Hva følger med?
  • CIOKS DC10 link power supply
  • Mains power cord
  • 17 Flex cables:
    • Type 1 – black with 5,5/2,1mm centre negative DC plug x8
    • Type 2 – red with 5,5/2,1mm centre positive DC plug x1
    • Type 4 – green with 5,5/2,5mm centre positive DC plug x2
    • Type 5 – black with 3,5mm tip positive Jack plug x1
    • Type 6 – black with 9V battery clip x1
    • Split Flex type 1 – black, powers two pedals of a single outlet x1
    • 3-way Daisy chain Flex type 1 – black, powers three pedals of a single outlet x1
    • Parallel adapter Flex – sand grey, adds currents of two outlets x1
    • Series adapter Flex – white, adds voltages of two outlets x1
  • Pedalboard mounting hardware: screws, washers, stand-offs and a hex key
  • Manual
  • Product sheet (drill template)
  • Flex guide
