Cioks Strømforsyninger

Cioks DC5 link

kr 1 790

På lager (kan restbestilles)

+

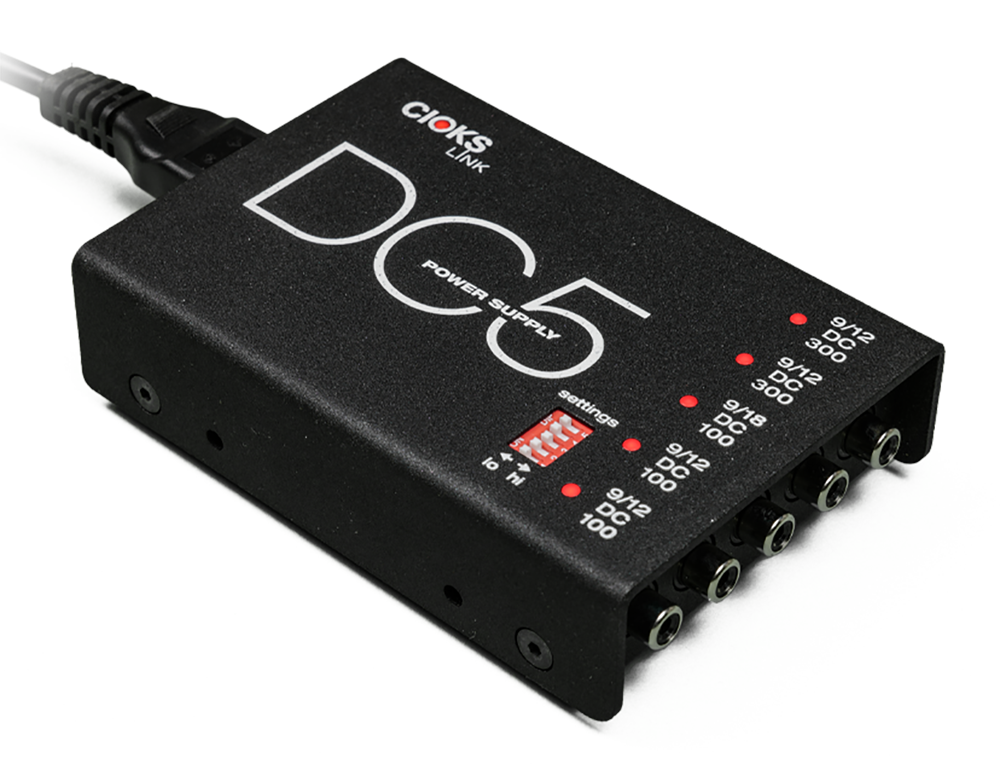

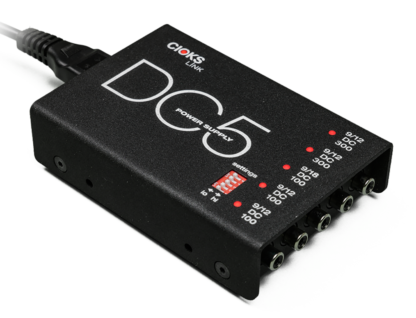

DC5 leverer 9,12 og 18V, og det er en kraftig spesifisert strømforsyning med en output på inntil 900mA.
Alle de 5 isolerte utgangene er satt opp til 9V, men med en dip-svitsj, så kan du flippe de opp til 12V. Utgang 3 kan vippes opp til hele 18V.

Specification

Spesifikasjon
  • 5 isolated outlets with 9, 12 or 18V
  • Total output current of 900mA
  • Two powerful outlets, 300mA each
  • One outlet configurable to 18V
  • High efficiency toroidal transformer
  • Short circuit protection of all outlets
  • Advanced LED monitoring of each outlet
  • 120 or 230V mains voltage operation
  • Detachable mains power cord
  • DC5 easily adds 5 extra isolated outlets to another link power supply
  • Total of 10 Flex cables included
  • Split Flex for powering two pedals of one outlet included
  • Super flat, fits under Pedaltrain nano, mini, the new nano+ and all metro boards
  • Compatible with Temple Audio boards
  • All pedalboard mounting hardware included
Hva følger med?
  • CIOKS DC5 Link power supply
  • Mains power cord
  • 10 Flex cables:
    • Type 1 – black with 5,5/2,1mm centre negative DC plug x5
    • Type 2 – red with 5,5/2,1mm centre positive DC plug x1
    • Type 4 – green with 5,5/2,5mm centre positive DC plug x1
    • Type 5 – black with 3,5mm tip positive Jack plug x1
    • Type 6 – black with 9V battery clip x1
    • Split Flex type 1 – black, powers two pedals of a single outlet x1
  • Pedalboard mounting hardware: 2 screws a hex key
  • Manual
  • Product sheet (drill guide)
  • Flex guide
