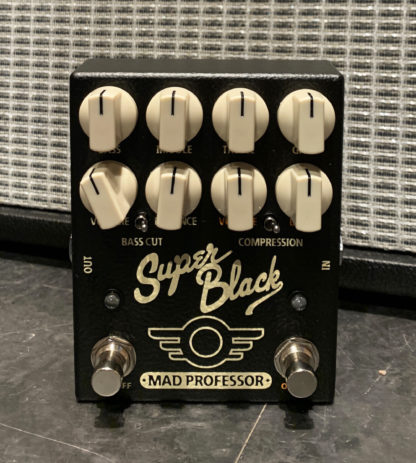

Mad Professor Super Black
kr 2 790
● 9VDC power supply input, 2.1mm plug center negative and positive sleeve.
● Current consumption at 9V DC: 27mA
● Voltage range: 8V-16V
● Input impedance: 400 kOhm
● Output impedance: 1.5 kOhm
● Complete bypass (true bypass)
● MIDDLE and TREBLE: Adjustments for amount of middle and high frequencies in the preamp section.
● BASS: Adjusts the amount of the low frequencies.
● PRESENCE: Adjust the amount of high frequencies at pedal output.
● GAIN: Adjusts the amount of distortion in Blackface side.
● DRIVE: Adjusts the amount of distortion in Sweet Honey side.
● VOLUME (x2, one for Blackface side and one for Sweet Honey side): Sets the output level.
● BASS CUT SWITCH: Full bass level on the left and slightly cut low bass on the right.
● COMPRESSION SWITCH: More compression on the left and less compression with maximum dynamics on the rigth.
EAN: 643003309 143 2 NOTES: Never operate the unit with its bottom removed or damage will most likely occur. Super Black is protected against wrong eliminator polarity. The manufacturer claims that the above mentioned product fulfills the requirements as set by en 55013, en 55020, en 60555-2 and en 60555-3, RoHs and Wee.
